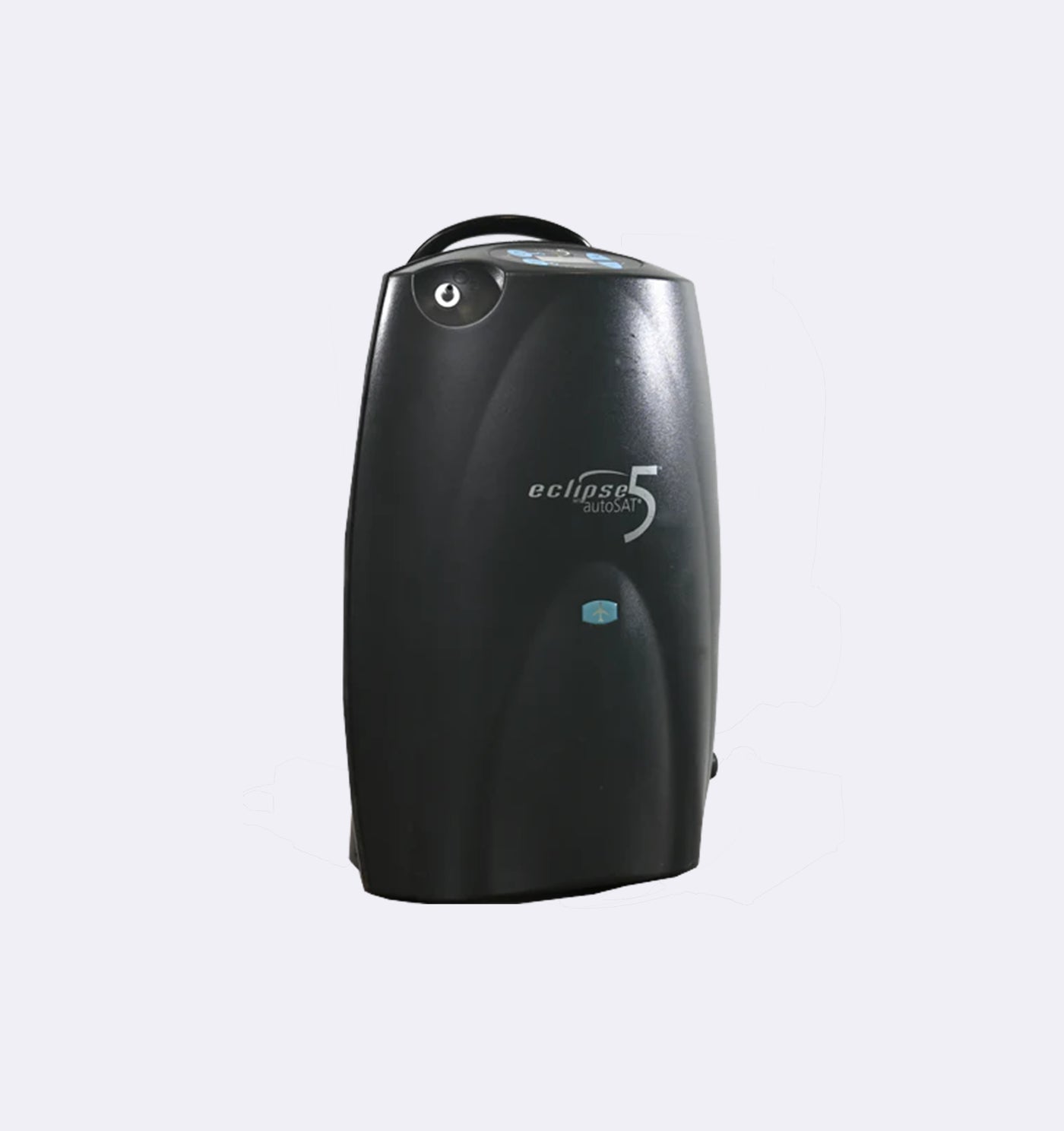

The SeQual Eclipse 5 is a true Personal Ambulatory Oxygen system because it offers both continuous and pulse flow delivery modes. It has the highest oxygen output of any concentrator. It offers pulse flow settings 1-9 and continuous flow settings 0.5-3.0 LPM. And its compressor is rated to run 24/7! Weighing 18.4 pounds with the battery installed and standing 12.3” W x 7.1” D x 19.3” H, the Eclipse 5 comes with a wheeled travel cart to make transporting your concentrator seem effortless.
What makes the Eclipse 5 excel is the presence of a long lasting battery that will easily keep up with you going throughout your daily errands. After all you’re putting in the extra effort just to get up and move around, so don’t you want a portable oxygen concentrator that puts in the extra effort for battery life? Whether you want to live a more active life or if you just want a reliable, long lasting concentrator the Eclipse 5 will help you accomplish your goals and improve your quality of life.
Pulse Flow Battery Life: Up to 5.1 Hours
Cont. Flow Battery Life: Up to 2.0 Hours

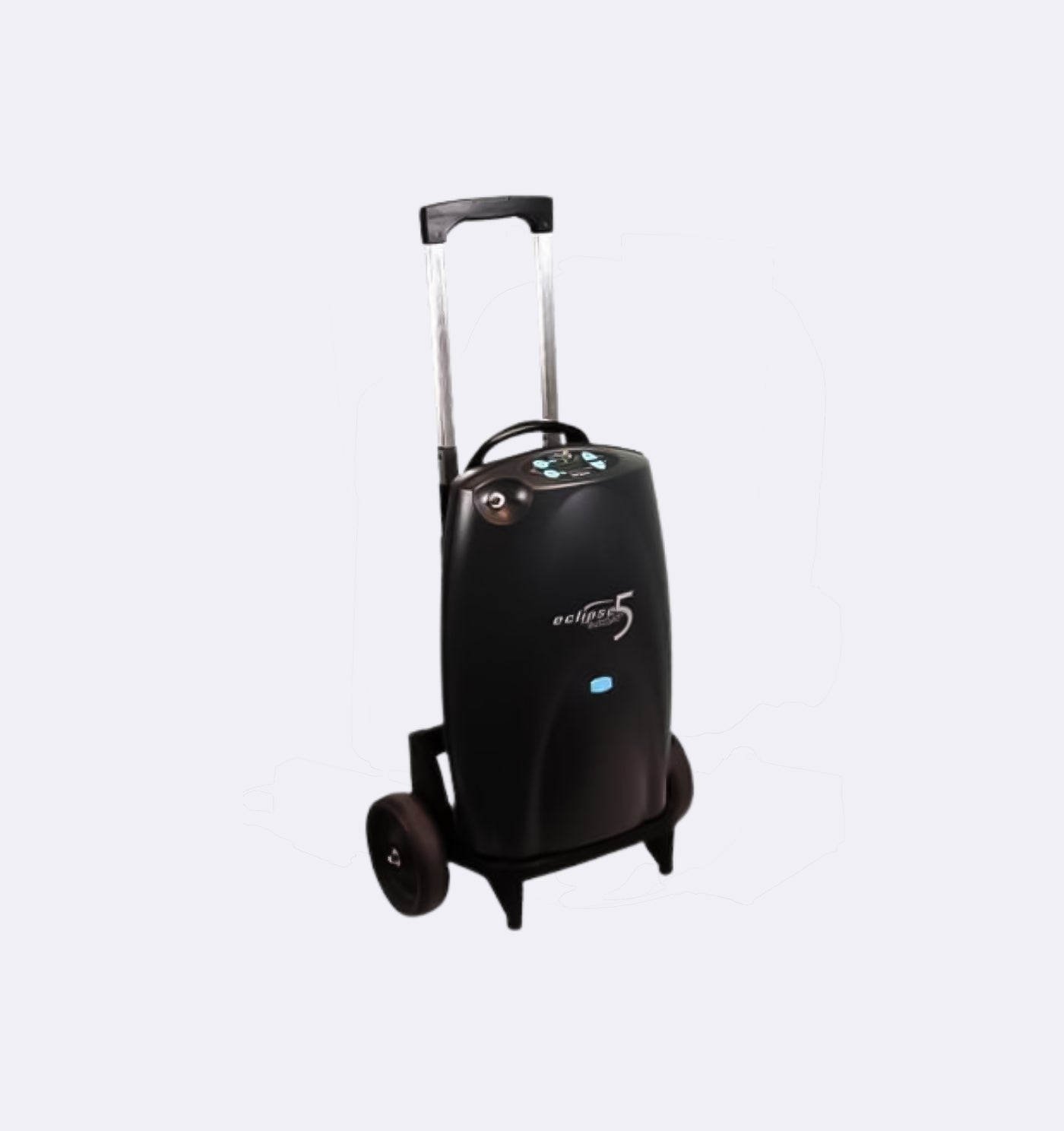

Walking between terminals and extended distances is a common occurrence when traveling, but as a COPD patient your body cannot keep up with those type of demands alone. The SeQual Eclipse 5 portable concentrator come equipped with an easy to attach traveling cart, the travel cart has a telescoping handle so you can adjust it to your preferred comfort setting. The large oversized wheels make it easy to tackle rough terrain, curbs, and more! Whether you're going for a walk with a friend or taking a family vacation, the Eclipse 5 is easy to transport and eliminates the restrictions the cumbersome oxygen tanks put on you.
Operating a portable oxygen concentrator shouldn’t ever seem like a chore. SeQual has made operating the Eclipse 5 as easy as possible. With the push of a button you can turn your concentrator on or off, adjust your flow rate, and you can even switch your concentrator from pulse flow to continuous flow or vice versa. The battery is easily accessible while your concentrator is attached to the travel cart allowing for quick and easy battery changes. You won’t have to worry about taking the extra steps to remove your unit from the cart.
[fa icon="quote-left"] Excellent service, along with great information regarding product. Just what we were looking for and with an great price.[fa icon="quote-right"]
[fa icon="quote-left"]Great services, the salesman or representative knows their product it's unreal. I purchased an oxygen concentrator in about 3hrs from the web, an in store purchase couldn't have been better. And I'm from Canada. Thanks a million again.[fa icon="quote-right"]
[fa icon="quote-left"] It was an overall great experience shopping with your company. Any queries I had the customer representative gave prompt responses. Product received on time and working satisfactorily. Thank you[fa icon="quote-right"]
Flow Rate | Pulse Flow Battery Life | Continuous Flow Battery Life |
1 | Up to 5.4 Hours | Up to 3.7 Hours |
2 | Up to 5.1 Hours | Up to 2.0 Hours |
3 | Up to 4.9 Hours | Up to 1.3 Hours |
4 | Up to 4.0 Hours | N/A |
5 | Up to 3.7 Hours | N/A |
6 | Up to 3.5 Hours | N/A |
7 | Up to 2.5 Hours | N/A |
8 | Up to 2.0 Hours | N/A |
9 | Up to 1.7 Hours | N/A |
Many oxygen patients also use a CPAP or BiPAP machine at night while sleeping, which is why SeQual made it easy to use your CPAP or BiPAP machine in congruence with the SeQual Eclipse 5. Simply follow the instructions on your CPAP or BiPAP to successfully connect your concentrator at night and then set the concentrator to your required flow rate and you are good to go!
When it comes to charging the Eclipse 5 you have two options, the first is the AC power supply for when you are at home, on the other hand you can use the DC power supply to charge the Eclipse 5 on the goin the car through the cigarette lighter. In fact you can charge and use the Eclipse 5 on the go with the DC power supply, which allows full functionality and operation on all pulse flow settings. If using continuous flow the unit will charge and operate up to 2 LPM but will only operate and on 3 LPM.
Weight |
18.4 Pounds |
Dimensions |
19.3” H x 12.3” W x 7.1” D |
Flow Rate |
Continuous Flow Settings 0.5-3.0 LPM Pulse Flow Settings 1-9 |
Battery Life |
Continuous Flow Up To 2.0 Hours Pulse Flow Up To 5.1 Hours |
Power |
100-240 VAC, 50/60 Hz; 12V Nominal |
FAA Approved |
Yes |
Warranty |
3 Years |
Yes we are! You will notice our badge of approval on this page, which notes that we are an authorized dealer. Please make sure any company you plan to do business with is an authorized dealer of SeQual products
The Eclipse 5 itself weighs 15 pounds without the battery installed. When you have the battery installed it will weigh 18.4 pounds.
Continuous flow units are much larger than the pulse flow units because they require larger motors and compressors. The Eclipse 5 stands 12.3” W x 7.1” D x 19.3” H and weighs 18.4 pounds.
On a pulse flow setting of 2 you can expect to get up to 5.1 hours of battery life on a single charge. On a continuous flow setting of 2.0 LPM you can expect to get up to 2.0 hours of battery life on a single charge.
The Eclipse 5 battery can be charged using the AC power supply, DC power supply, or external battery charger. The AC power supply and external battery charger are the most efficient ways to recharge your battery and have no limitations. However, the DC power supply will only charge your battery if you are using your concentrator on a setting of 4 pulse or 2.0 LPM or lower.
When using the AC or DC power supplies your battery will charge in 2-5 hours depending on if you are using your concentrator and what setting you use it on. When using the external battery charger you can expect your battery to fully recharge in 3 hours.
The Eclipse 5 has the highest oxygen output on the market. It offers pulse flow settings 1-9 and continuous flow settings 0.5-3.0 LPM.
The Eclipse 5 registers at 48 decibels on a setting of 3.0 LPM and 40 decibels on a setting of 3 pulse. Both of these ratings are quieter than a running refrigerator or a normal conversation so you know the Eclipse won’t be invasive.
The Eclipse 5 has an operating altitude range of 0-13,123 feet. If you go above 13,123 feet the concentrator’s performance may suffer.
"1st Class Medical does not provide any Home Servicing of equipment"
